Mic & Line Level Audio Over Optical Fiber Extender to 20 Kilometers SMF or 500 Meters MMF, Supports 16-bit Balanced Audio

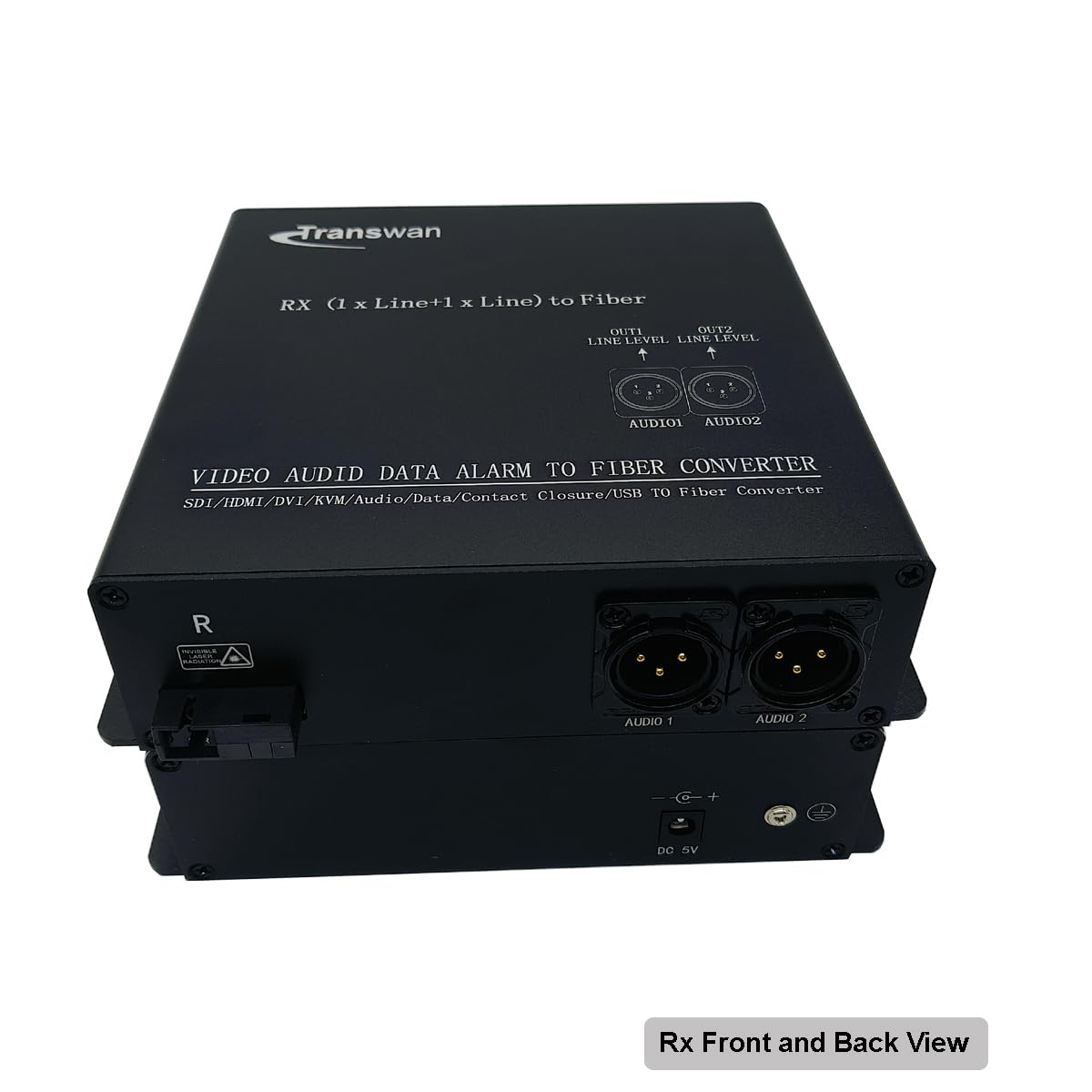

BY-XLR-391 Mic & Line Level Audio To Fiber Optic transmitter & receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc. They are available for stand-alone or rack-mount installations. Opitcal： Wavelength: 1310nm Output Power: -14~ -8dBm Optical fiber: 50/125u multimode，62.5/125u multimode，9/125u single mode Rx sensitivity: -30dBm Optical connector: SC (default), LC/FC/ST Optional Distance: 0~500 Meters (MMF) / 0~20 Kilomters (SMF) Mic level & Line level Balanced Audio： Input Connector: XLR（female) Output Connector: XLR（male) Mic level Audio: 1 Channel (Input) Input Impedance: 2k Ohm Dynamic Range: 60dB Line level Audio: 1 Channel (Input), 2 Channels (Output) Input / Output Impedance: 10K Ohm Input capacitance LINE inputs: 10 pF Max input/output voltage: 1.0Vp-p Frequency Response: 20 Hz～24kHz @±3dB Sample Rates From: 48kHz SNR: > 80dB Electrical & Mechanical： Input Power Requirements: DC 5V@2A Power: AC 90V~240V Power Consumption: <5W Stand-Alone Dimensions: 168 mm × 154 mm × 45 mm Shipping Weight: (include Transmitter & Receiver ) 2.5kg Environmental: Operating Temperature: -20°C ~ +75°C Storage Temperature: -40°C ~ +85°C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours Package contains: 1. 1 transmitter with optical module. 2. 1 receiver with optical module. 3. 2 x Power supply adapter with US/EU/UK/AU plug

• 1 Ch Mic Level & 1 Ch Line Level (input) Balanced Audio over 500 Meters Multi-mode Fiber or 20 Kilometers Single-mode Fiber, 2 Ch Line-Level Audio Output.
• Supports 16-bit digitally encoded broadcast quality balanced audio
• Supports stand-alone or rack-mount installations
• Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
• Applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc
